Gypsum hydrocyclone station/cyclone in application of flue gas desulfurization device

2018-10-07

Is mainly used for limestone/gypsum method, ammonia method, double alkaline or wet desulfurization process desulfurization preconcentration processing, facilitate vacuum belt machine, centrifuge equipment further dehydration.

Weihai Tongge Technology Co., Ltd

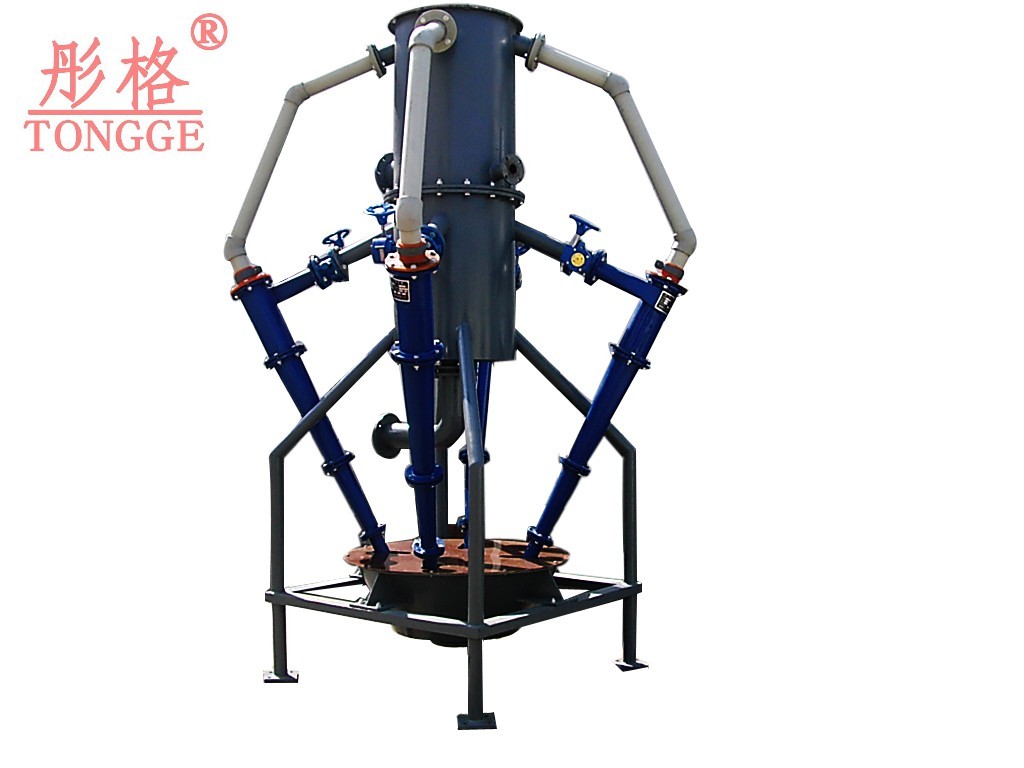

Hydrocyclone is mainly used for limestone/gypsum method, ammonia method, double alkaline or wet desulfurization process desulfurization preconcentration processing, facilitate vacuum belt machine, centrifuge equipment further dehydration.

Absorption tower of gypsum slurry weight concentration is 10% commonly - 10%, after the cyclone underflow concentration after dehydration concentrate can reach 40% 60%, the overflow concentration of 2.5% to 2.5%.

Weihai tong lattice technology product features:

L lined with high performance polyurethane by metal mould casting vulcanization molding, can ensure the surface smooth, cyclone size accurate, enrichment effect is better than that of manual daub composite wear-resistant materials or paste ceramic pieces of cyclone;

To deal with the l hydrocyclone 50 to 60 ℃ of gypsum slurry, ordinary pu can't bear the corrosion hydrolysis, tong company research and development of high performance polyurethane is wear and corrosion resistance, operation time of 18 months, filled the domestic blank, is better than that of imports, cost-effective;

L cyclone by the flange connection between paragraphs, when high pressure does not leak slurry;

L volute involute entry: particles along the involute entrance natural adjustment and spin down, can reduce turbulence, and improve the processing capacity and separation efficiency, and also extend the service life of the overflow mouth, rectangular inlet can ensure to join in the cyclone wall to form a thin ring, thus further reduce turbulence.
